D 1 ~ 4 mm

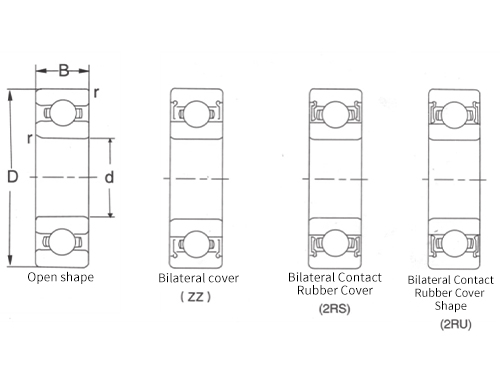

HoofDafmetingen (mm) | RubbeRen Dop | IjzeRen Dop | MoDel | Basis Dynamisch DRaagveRmogen | Basis statische belastingswaaRde | RefeRentiegewicht (g) | |||||||
d | D | B | R | B1 | r1 | Open | Ijzeren dop | Contactkap | Contactloos | Cr(N) | Maïs) | Open | Type rubberen hoes Type ijzeren kap |
1 | 3 | 1.0 | 0.05 | 1.5 | 0.05 | 681 | 681 ZZ | / | / | 80 | 23 | 0.08 | |
3 | 1.5 | 0.05 | / | / | MR31 | / | / | / | 80 | 23 | 0.07 | ||
4 | 1.6 | 0.10 | 2.3 | 0.10 | 691 | 691 ZZ | / | / | 140 | 36 | 0.10 | ||
1.2 | 4 | 1.8 | 2.50 | 0.1 | 0.10 | MR41X | MR41XZZ | / | / | 138 | 35 | 0.10 | 0.14 |
1.5 | 4 | 1.2 | 0.05 | 2.0 | 0.05 | 68/1,5 | 68/1,5 ZZ | / | / | 112 | 33 | 0.07 | 0.11 |
5 | 2.0 | 0.15 | 2.6 | 0.15 | 69/1,5 | 69/1,5 ZZ | / | / | 240 | 69 | 0.17 | 0.19 | |
6 | 2.5 | 0.15 | 3.0 | 0.15 | 60/1,5 | 60/1,5 ZZ | / | / | 330 | 99 | 0.31 | 0.36 | |
2 | 4 | 1.2 | 0.05 | 2.0 | 0.06 | 672 | 672 ZZ | / | / | 104 | 37 | 0.10 | 0.14 |
5 | 1.5 | 0.08 | 2.3 | 0.08 | 682 | 682 ZZ | / | / | 188 | 59 | 0.12 | 0.17 | |
5 | 2.0 | 0.10 | 2.5 | 0.10 | MR52 | MR52 ZZ | / | / | 188 | 59 | 0.16 | 0.22 | |
6 | 2.3 | 0.15 | 3.0 | 0.15 | 692 | 692 ZZ | / | / | 330 | 99 | 0.28 | 0.38 | |
6 | 2.5 | 0.15 | 2.5 | 0.15 | MR62 | MR62 ZZ | / | / | 330 | 99 | 0.28 | 0.33 | |
7 | 2.5 | 0.15 | 3.0 | 0.15 | MR72 | MR72 ZZ | / | / | 385 | 128 | 0.43 | 0.47 | |
7 | 2.8 | 0.15 | 3.5 | 0.15 | 602 | 602 ZZ | / | / | 385 | 128 | 0.51 | 0.58 | |
2.5 | 5 | 1.5 | 0.08 | / | / | 67/2,5 | 67/2,5 ZZ | / | / | 153 | 59 | 0.11 | 0.11 |
6 | 1.8 | 0.08 | 2.3 | 0.08 | 68/2,5 | 68/2,5 ZZ | / | / | 209 | 73 | 0.23 | 0.29 | |
7 | 2.5 | 0.15 | 2.6 | 0.08 | 69/2,5 | 69/2,5 ZZ | / | / | 385 | 128 | 0.40 | 0.55 | |
8 | 2.5 | 0.20 | 3.5 | 0.15 | MR82 X | MR82XZZ | / | / | 560 | 179 | 0.52 | ||
8 | 2.8 | 0.15 | / | / | 60/2,5 | 60/2,5 ZZ | / | / | 550 | 175 | 0.63 | 0.83 | |
3 | 6 | 2.0 | 0.08 | 4.0 | 0.15 | 673 | 673 ZZ | / | / | 209 | 73 | 0.19 | 0.28 |
7 | 2.0 | 0.10 | 2.5 | 0.08 | 683 | 683 ZZ | / | / | 385 | 129 | 0.32 | 0.43 | |
8 | 2.5 | 0.15 | 3.0 | 0.10 | MR83 | / | / | / | 560 | 179 | 0.51 | ||
8 | 3.0 | 0.15 | 4.0 | 0.15 | 693 | 693 ZZ | / | / | 56 | 179 | 0.61 | 0.83 | |
9 | 2.5 | 0.20 | 4.0 | 0.15 | MR93 | MR93 ZZ | / | / | 640 | 226 | 0.68 | 1.18 | |
9 | 3.0 | 0.15 | 5.0 | 0.15 | 603 | 603 ZZ | / | 640 | 226 | 0.84 | 1.20 | ||
10 | 4.0 | 0.15 | 4.0 | 0.15 | 623 | 623 ZZ | / | / | 615 | 226 | 1.65 | 1.66 | |
13 | 5.0 | 0.20 | 5.0 | 0.20 | 633 | 633 ZZ | / | / | 1300 | 485 | 3.38 | 3.33 | |
4 | 7 | 2.0 | 0.08 | 2.5 | 0.08 | 674 | 674 ZZ | / | / | 315 | 115 | 0.21 | 0.29 |
8 | 2.0 | 0.15 | 3.0 | 0.10 | MR84 | MR84 ZZ | / | / | 395 | 140 | 0.33 | 0.56 | |
9 | 2.5 | 0.10 | 4.0 | 0.10 | 684 | 684 ZZ | / | / | 640 | 226 | 0.63 | 1.01 | |
10 | 3.0 | 0.20 | 4.0 | 0.15 | MR104 | MR104 ZZ | / | / | 650 | 236 | 0.95 | 1.33 | |
11 | 4.0 | 0.15 | 4.0 | 0.15 | 694 | 694 ZZ | 694-2RS | 694-2RU | 715 | 283 | 1.70 | 1.75 | |
12 | 4.0 | 0.20 | 4.0 | 0.20 | 604 | 604 ZZ | 604-2RS | 604-2RU | 970 | 360 | 2.25 | 2.29 | |
13 | 5.0 | 0.20 | 5.0 | 0.20 | 624 | 624 ZZ | 624-2RS | 624-2RU | 1300 | 485 | 2.97 | 3.04 | |
16 | 5.0 | 0.30 | 5.0 | 0.30 | 634 | 634 ZZ | 634-2RS | 634-2RU | 1740 | 670 | 5.00 | 5.21 |
d5~15mm
Hoofdafmetingen (mm) | Rubberen dop | Ijzeren dop | Model | Basis dynamisch draagvermogen | Basis statische belastingswaarde | Referentiegewicht (g) | |||||||
d | D | B | r | B1 | r1 | Open | Ijzeren dop | Contactkap | Contactloos | Cr(N) | Maïs) | Open | Type rubberen hoes Type ijzeren kap |
5 | 8 | 2.0 | 0.08 | 2.5 | 0.08 | 675 | 675 ZZ | / | / | 278 | 131 | 0.25 | 0.34 |
9 | 2.5 | 0.15 | 3.0 | 0.15 | MR95 | MR95 ZZ | / | / | 435 | 168 | 0.48 | 0.54 | |
10 | 3.0 | 0.15 | 4.0 | 0.15 | MR105 | MR105 ZZ | / | / | 435 | 168 | 0.90 | 1.29 | |
11 | 3.0 | 0.15 | 5.0 | 0.15 | 685 | 685 ZZ | 685-2RS | 685-2RU | 715 | 283 | 1.20 | 1.95 | |
13 | 4.0 | 0.20 | 4.0 | 0.20 | 695 | 695 22 | 695-2RS | 695-2RU | 1080 | 430 | 2.40 | 2.5 | |
14 | 5.0 | 0.20 | 5.0 | 0.20 | 605 | 605 ZZ | 605-2RS | 605-2RU | 1330 | 505 | 3.54 | 4 | |
16 | 5.0 | 0.30 | 5.0 | 0.30 | 625 | 625 ZZ | 625-2RS | 625-2RU | 1730 | 670 | 4.95 | 6 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 635 | 635 22 | 635-2RS | 635-2RU | 2620 | 1060 | 8.53 | 9 | |
6 | 10 | 2.5 | 0.10 | 3.0 | 0.10 | 675 | 675 ZZ | / | / | 495 | 219 | 0.53 | 0.9 |
12 | 3.0 | 0.20 | 4.0 | 0.15 | MR126 | MR126 ZZ | / | / | 715 | 292 | 1.20 | 1.6 | |
13 | 3.5 | 0.15 | 5.0 | 0.15 | 686 | 686 ZZ | 686-2RS | 686-?RU | 1080 | 440 | 1.90 | 2.5 | |
15 | 5.0 | 0.20 | 5.0 | 0.20 | 696 | 696 ZZ | 696-2RS | 696-2RU | 1740 | 670 | 3.79 | 3.9 | |
17 | 6.0 | 0.30 | 6.0 | 0.30 | 606 | 606 ZZ | 606-2RS | 606-2HU | 2260 | 840 | 5.94 | 6 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 626 | 626 22 | 626-2RS | 626-2RU | 2620 | 1060 | 7.97 | 8 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 636 | 636 ZZ | 636 2RS | 636-2RU | 3300 | 1360 | 13.00 | 13 | |
7 | 11 | 2.5 | 0.10 | 3.0 | 0.10 | 677 | 677 22 | / | / | 455 | 201 | 0.59 | 0.71 |
13 | 3.0 | 0.20 | 4.0 | 0.15 | MR137 | MR137 ZZ | / | / | 830 | 375 | 1.50 | 1.98 | |
14 | 3.5 | 0.15 | 5.0 | 0.15 | 687 | 687 ZZ | 687-2RS | 687-2RU | 1170 | 510 | 2.00 | 2.97 | |
17 | 5.0 | 0.30 | 5.0 | 0.30 | 697 | 697 ZZ | 697-2RS | 697-2RU | 1610 | 715 | 4.80 | 5.01 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 607 | 607 ZZ | 607-2RS | 607-2RU | 2620 | 1060 | 7.67 | 8 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 627 | 627 ZZ | 627-2RS | 627-2RU | 3300 | 1360 | 12.00 | 12 | |
26 | 9.0 | 0.30 | 9.0 | 0.30 | 637 | 637 ZZ | 637-2RS | 637-2RU | 4000 | 1580 | 24.00 | 25 | |
8 | 12 | 2.5 | 0.10 | 3.5 | 0.10 | 678 | B78 22 | / | / | 535 | 271 | 0.70 | 0.95 |
14 | 3.5 | 0.20 | 4.0 | 0.15 | MR148 | MR148 ZZ | / | / | 820 | 385 | 1.90 | 2.12 | |
16 | 4.0 | 0.20 | 5.0 | 0.20 | 688 | BA8 22 | 688-2RS | 688-2RU | 1250 | 590 | 3.00 | 3.7 | |
19 | 6.0 | 0.30 | 6.0 | 0.30 | 698 | 698 ZZ | 698-2RS | 698-2RU | 2240 | 905 | 7.18 | 7.2 | |
22 | 7.0 | 0.30 | 7.0 | 0.30 | 608 | 608 ZZ | 608-2RS | 608-2RU | 3300 | 1360 | 12.00 | 12 | |
24 | 8.0 | 0.30 | 8.0 | 0.30 | 628 | 628 22 | 628-2RS | B28-2RU | 3350 | 1410 | 17.00 | 17.3 | |
28 | 9.0 | 0.30 | 9.0 | 0.30 | 638 | 638 ZZ | 638-2RS | 638-2RU | 4550 | 1970 | 27.00 | 28.6 | |
9 | 14 | 3.0 | 0.10 | 4.5 | 0.10 | 679 | 679 ZZ | / | / | 930 | 470 | 1.35 | 1.98 |
17 | 4.0 | 0.20 | 5.0 | 0.20 | 689 | 689 ZZ | 689-2RS | 689-2RU | 1730 | 810 | 3.53 | 4.43 | |
20 | 6.0 | 0.30 | 6.0 | 0.30 | 699 | 699 ZZ | 699-2RS | 699-2RU | 2120 | 985 | 8.33 | 8.45 | |
24 | 7.0 | 0.30 | 7.0 | 0.30 | 609 | 609 ZZ | 609-2RS | 609-2RU | 3350 | 1410 | 14.50 | 14.6 | |
26 | 8.0 | 0.30 | 8.0 | 0.30 | 629 | 629 22 | 629-2RS | 629-2RU | 4550 | 1970 | 19.50 | 20 | |
30 | 10 | 0.60 | 10 | 0.60 | 639 | 639 ZZ | 639-2RS | 639-2RU | 5100 | 2390 | 34.00 | 36 |
d5~15mm
Hoofdafmetingen (mm) | Model | Cr(N) | Maïs) | gewicht (g) | ||||||
d | D | B | r | Open | Ijzeren dop | Contactkap | Contactloos | |||
10 | 15 | 3 | 0.1 | 6700 | 6700 ZZ | 6700-2RS | 6700-2RU | 1010 | 555 | 0.0015 |
19 | 5 | 0.3 | 6800 | 6800 ZZ | 6800-2RS | 6800-2RU | 1840 | 925 | 0.005 | |
19 | 7 | 0.3 | 63800 | 63800 ZZ | 63800-2RS | 63800-2RU | 1840 | 925 | 0.0074 | |
22 | 6 | 0.3 | 6900 | 6900 ZZ | 6900-2RS | 6900-2RU | 2700 | 1270 | 0.009 | |
26 | 8 | 0.3 | 6000 | 6000 ZZ | 6000-2RS | 6000-2RU | 4550 | 1970 | 0.019 | |
26 | 12 | 0.5 | 63000 | / | 63000-2RS | / | 4620 | 1960 | 0.025 | |
28 | 8 | 0.3 | 16100 | / | / | / | 4620 | 1960 | 0.022 | |
30 | 9 | 0.6 | 6200 | 6200 ZZ | 6200-2RS | 6200-2RU | 5100 | 2390 | 0.032 | |
30 | 14 | 1 | 62200 | / | 62200-2RS | / | 5070 | 2360 | 0.04 | |
30 | 14.3 | 1 | 63200 | / | 63200-2RS | / | 5146 | 2350 | 0.046 | |
35 | 11 | 0.6 | 6300 | 6300 ZZ | 6300-2RS | 6300-2RU | 8100 | 3450 | 0.053 | |
35 | 17 | 1 | 62300 | / | 62300-2RS | / | 8060 | 3400 | 0.06 | |
35 | 19.05 | 0.6 | 63300 | / | 63300-2RS | / | 8095 | 3565 | 0.105 | |
37 | 12 | 0.6 | 6400 | / | / | / | 9000 | 4650 | / | |
12 | 18 | 4 | 0.2 | 6701 | 6701 ZZ | 6701-2RS | 6701-2RU | 1070 | 6555 | 0.003 |
21 | 5 | 0.3 | 6801 | 6801 ZZ | 6801-2RS | 6801-2RU | 1900 | 1040 | 0.006 | |
21 | 7 | 0.3 | 63801 | 63801 ZZ | 63801-2RS | 63801-2RU | 1900 | 1040 | 0.0085 | |
24 | 6 | 0.3 | 6901 | 6901 ZZ | 6901-2RS | 6901-2RU | 2900 | 1460 | 0.011 | |
28 | 7 | 0.3 | 16001 | / | / | / | 5100 | 2400 | 0.024 | |
28 | 8 | 0.3 | 6001 | 6001 ZZ | 6001-2RS | 6001-2RU | 5100 | 2390 | 0.023 | |
28 | 12 | 0.5 | 63001 | / | 63001-2RS | / | 5070 | 2360 | 0.029 | |
30 | 8 | 0.3 | 16101 | / | / | / | 5070 | 2360 | 0.023 | |
32 | 10 | 0.6 | 6201 | 6201 ZZ | 6201-2RS | 6201-2RU | 6800 | 3050 | 0.037 | |
32 | 14 | 1 | 62201 | / | 62201-2RS | / | 6890 | 3100 | 0.046 | |
32 | 15.9 | 1 | 63201 | / | 63201-2RS | / | 7000 | 3050 | 0.055 | |
37 | 12 | 1 | 6301 | 6301 ZZ | 6301-2RS | 6301-2RU | 9800 | 4250 | 0.06 | |
37 | 1700 | 1.5 | 62301 | / | 62301-2RS | / | 9750 | 4150 | 0.074 | |
37 | 1905 | 1 | 63301 | / | 63301-2RS | / | 9705 | 4360 | 0.114 | |
42 | 13 | 1 | 6401 | / | / | / | 11600 | 5150 | 0.048 | |
15 | 21 | 4 | 0.2 | 6702 | 6702 ZZ | 6702-2RS | 6702-2RU | 1150 | 790 | 0.0035 |
24 | 5 | 0.3 | 6802 | 6802 ZZ | 6802-2RS | 6802-2RU | 2080 | 1260 | 0.007 | |
24 | 7 | 0.3 | 63802 | 63802 ZZ | 63802-2RS 63802-2RU | 2080 | 1260 | 0.01 | ||
28 | 7 | 0.3 | 6902 | 6902 ZZ | 6902-2RS | 6902-2RU | 4300 | 2250 | 0.016 | |
32 | 8 | 0.3 | 16002 | / | / | / | 5600 | 2840 | 0.025 | |
32 | 9 | 0.3 | 6002 | 6002 ZZ | 6002-2RS | 6002-2RU | 5600 | 2840 | 0.032 | |
32 | 13 | 0.5 | 63002 | / | 63002-2RS | / | 5590 | 2850 | 0.042 | |
35 | 11 | 0.6 | 6202 | 6202 ZZ | 6202-2RS | 6202-2RU | 7650 | 3700 | 0.045 | |
35 | 14 | 1 | 62202 | / | 62202-2RS | / | 7800 | 3750 | 0.056 | |
35 | 15.9 | 1 | 63202 | / | 63202-2RS | / | 8000 | 3600 | 0.068 | |
42 | 13 | 1 | 6302 | 6302 ZZ | 6302-2RS | 6302-2RU | 11400 | 5400 | 0.082 | |
42 | 17 | 1.5 | 62302 | / | 62302-2RS | / | 11400 | 5400 | 0.11 | |
42 | 19 | 1.5 | 63302 | / | 63302-2RS | / | 8232 | 4900 | 0.152 | |
52 | 15 | 1.1 | 6402 | / | / | / | 15900 | 7300 | 0.137 |
d 17 ~ 35 mm
Hoofdafmetingen (mm) | Model | Cr(N) | Maïs) | gewicht (g) | ||||||
d | D | B | r | Open | Ijzeren dop | Contactkap | Contactloos | |||
17 | 23 | 4 | 0.2 | 6703 | 6703 ZZ | 6703-2RS | 6703-2RU | 1200 | 865 | 0.004 |
26 | 5 | 0.3 | 6803 | 6803 ZZ | 6803-2RS | 6803-2RU | 2630 | 1570 | 0.008 | |
26 | 7 | 0.3 | 63803 | 63803 ZZ | 63803-2RS | 63803-2RU | 2630 | 1570 | 0.011 | |
30 | 7 | 0.3 | 6903 | 6903 ZZ | 6903-2RS | 6903-2RU | 4600 | 2550 | 0.018 | |
35 | 8 | 0.3 | 16003 | / | / | / | 6000 | 3250 | 0.032 | |
35 | 10 | 0.3 | 6003 | 6003 ZZ | 6003-2RS | 6003-2RU | 6000 | 3250 | 0.039 | |
35 | 14 | 0.5 | 63003 | / | 63003-2RS | / | 6050 | 3250 | 0.051 | |
40 | 12 | 0.6 | 6203 | 6203 ZZ | 6203-2RS | 6203-2RU | 9550 | 4800 | 0.065 | |
40 | 16 | 1 | 62203 | / | 62203-2RS | / | 9560 | 4750 | 0.085 | |
40 | 17.5 | 1 | 63203 | / | 63203-2RS | / | 9200 | 4500 | 0.09 | |
47 | 14 | 1 | 6303 | 6303 ZZ | 6303-2RS | 6303-2RU | 13600 | 6550 | 0.115 | |
47 | 19 | 1.5 | 62303 | / | 62303-2RS | / | 13500 | 6550 | 0.149 | |
47 | 22.2 | 1.5 | 63303 | / | 63303-2RS | / | 9800 | 5684 | 0.176 | |
62 | 17 | 1.1 | 6403 | / | / | / | 22700 | 10800 | 0.271 | |
20 | 27 | 4 | 0.2 | 6704 | 6704 ZZ | 6704-2RS | 6704-2RU | 1790 | 1320 | 0.005 |
32 | 7 | 0.3 | 6804 | 6804 ZZ | 6804-2RS | 6804-2RU | 4000 | 2470 | 0.019 | |
32 | 10 | 0.3 | 63804 | 63804 ZZ | 63804-2RS | 63804-2RU | 4000 | 2470 | 0.024 | |
37 | 9 | 0.3 | 6904 | 6904 ZZ | 6904-2RS | 6904-2RU | 6350 | 3700 | 0.036 | |
42 | 8 | 0.3 | 16004 | / | / | / | 7900 | 4500 | 0.05 | |
42 | 12 | 0.6 | 6004 | 6004 ZZ | 6004-2RS | 6004-2RU | 9400 | 5000 | 0.07 | |
42 | 16 | 1 | 63004 | / | 63004-2RS | / | 9360 | 5000 | 0.088 | |
47 | 14 | 1 | 6204 | / | 6204-2RS | / | 12800 | 6600 | 0.106 | |
47 | 18 | 1.5 | 62204 | 6204 ZZ | 62204-2RS | 62204-2RU | 12700 | 6550 | 0.128 | |
47 | 20.6 | 1.5 | 63204 | / | 63204-2RS | / | 9800 | 6174 | 0.15 | |
52 | 15 | 1.1 | 6304 | / | 6304-2RS | / | 15900 | 7900 | 0.144 | |
52 | 21 | 2 | 62304 | 6304 ZZ | 62304-2RS | 62304-2RU | 15900 | 7800 | 0.197 | |
52 | 22.2 | 2 | 63304 | / | 63304-2RS | / | 11466 | 7056 | 0.21 | |
72 | 19 | 1.1 | 6404 | / | 6404-2RS | / | 31000 | 15200 | 0.408 | |
22 | 44 | 12 | 0.6 | 60/22 | 60/22ZZ | 60/22-2RS | 60/22-2RU | 9400 | 5050 | 0.074 |
50 | 14 | 1 | 62/22 | 62/22 ZZ | 62/22-2RS | 62/22-2RU | 13900 | 6950 | 0.12 | |
56 | 16 | 1.1 | 63/22 | 63/22 ZZ | 63/22-2RS | 63/22-2RU | 18400 | 9250 | 0.176 | |
25 | 32 | 4 | 0.2 | 6705 | 6705 ZZ | 6705-2RS | 6705-2RU | 1930 | 1550 | 0.006 |
37 | 7 | 0.3 | 6805 | 6805 ZZ | 6805-2RS | 6805-2RU | 4300 | 2950 | 0.022 | |
37 | 10 | 0.3 | 63805 | 63805 ZZ | 63805-2RS | 63805-2RU | 4300 | 2950 | 0.032 | |
42 | 9 | 0.3 | 6905 | 6905 ZZ | 6905-2RS | 6905-2RU | 7000 | 4500 | 0.041 | |
47 | 8 | 0.3 | 16005 | / | / | / | 6950 | 5650 | 0.06 | |
47 | 12 | 0.6 | 6005 | 6005 ZZ | 6005-2RS | 6005-2RU | 10100 | 5850 | 0.079 | |
47 | 16 | 1 | 63005 | / | 63005-2RS | / | 11200 | 6550 | 0.1 | |
52 | 15 | 1 | 6205 | 6205 ZZ | 6205-2RS | 6205-2RU | 14000 | 7900 | 0.128 | |
52 | 18 | 1.5 | 62205 | / | 62205-2RS | / | 14000 | 7800 | 0.146 | |
52 | 20.6 | 1.5 | 63205 | / | 63205-2RS | / | 10584 | 6860 | 0.175 | |
62 | 17 | 1.1 | 6305 | 6305 ZZ | 6305-2RS | 6305-2RU | 23600 | 12100 | 0.232 | |
62 | 24 | 2 | 62305 | / | 62305-2RS | / | 22500 | 11600 | 0.32 | |
62 | 25.4 | 2 | 63305 | / | 63305-2RS | / | 14700 | 9800 | 0.315 | |
80 | 21 | 1.5 | 6405 | / | / | / | 40000 | 20100 | 0.528 |
d 17 ~ 35 mm
Hoofdafmetingen (mm) | Model | Cr(N) | Maïs) | gewicht (g) | ||||||
d | D | B | r | Open | Ijzeren dop | Contactkap | Contactloos | |||
28 | 52 | 12 | 0.6 | 60/28 | 60/28ZZ | 60/28-2RS | 6028-2RU | 12500 | 7400 | 0.098 |
58 | 16 | 1 | 62/28 | 62/28 ZZ | 62/28-2RS | 62/28-2RU | 17900 | 9750 | 0.175 | |
68 | 16 | 1.1 | 63/28 | 63/28 ZZ | 63/28-2RS | 63/28-2RU | 26800 | 14000 | 0.287 | |
30 | 37 | 4 | 0.2 | 6706 | 6706 ZZ | 6706-2HS | 6706-2RU | 2050 | 1780 | 0.008 |
42 | 7 | 0.3 | 6806 | 6805 ZZ | 6806-2RS | 6806-2RU | 4500 | 3400 | 0.0026 | |
42 | 10 | 0.3 | 63806 | 63806 ZZ | 63806-2HS | 63806-2RU | 4500 | 3400 | 0.026 | |
47 | 9 | 0.3 | 6906 | 6906 ZZ | 6906-2HS | 6906-2RU | 7250 | 5000 | 0.045 | |
55 | 9 | 0.3 | 16006 | / | / | / | 9950 | 6550 | 0.085 | |
55 | 13 | 1 | 6006 | 6006 ZZ | 6006-2RS | 6006-2RU | 13200 | 8300 | 0.117 | |
55 | 19 | 1.5 | 63006 | / | 63006-2RS | / | 13300 | 8300 | 0.159 | |
62 | 16 | 1 | 6006 | 6706 ZZ | 6206-2RS | 6206-2RU | 19500 | 11300 | 0.199 | |
62 | 20 | 1.5 | 62206 | / | 62206-2RS | / | 19500 | 11200 | 0.242 | |
62 | 23.8 | 1.5 | 63206 | / | 63206-2RS | / | 14700 | 9800 | 0.28 | |
72 | 19 | 1.1 | 6306 | 6306 ZZ | 6306-2RS | 6306-2RU | 26700 | 15000 | 0.346 | |
72 | 27 | 2 | 62306 | / | 62306-2RS | / | 28100 | 16000 | 0.485 | |
72 | 30.2 | 2 | 63306 | / | 63306-2RS | / | 19600 | 13426 | 0.53 | |
90 | 23 | 1.5 | 6460 | / | / | / | 43500 | 23800 | 0.72 | |
32 | 58 | 13 | 1 | 60/32 | 60/32ZZ | 60/32-2RS | 60/32-2RU | 15100 | 9150 | 0.129 |
65 | 17 | 1 | 62/32 | 62/32ZZ | 62/32-2RS | 62/32-2RU | 22400 | 13100 | 0.23 | |
75 | 20 | 1.1 | 63/32 | 63/32ZZ | 63/32-2RS | 63/32-2RU | 30000 | 16200 | 0.382 | |
35 | 44 | 5 | 0.3 | 6707 | 6707 ZZ | 6707-2RS | 6707-2RU | 1862 | 1637 | 0.15 |
47 | 7 | 0.3 | 6807 | 6807 ZZ | 6807-2RS | 6807-2RU | 4900 | 4000 | 0.029 | |
55 | 10 | 0.6 | 6907 | 6907 ZZ | 6907-2RS | 69C7-2RU | 10400 | 7150 | 0.073 | |
62 | 9 | 0.3 | 16007 | / | / | / | 11700 | 8150 | 0.11 | |
62 | 14 | 1 | 6007 | 6007 ZZ | 6007-2RS | 6007-2RU | 16000 | 10300 | 0.156 | |
62 | 20 | 1.5 | 63007 | 63007-2RS | / | 15900 | 10200 | 0.21 | ||
72 | 17 | 1.1 | 6207 | 6207 ZZ | 6207-2RS | 6207-2RU | 25700 | 15300 | 0.28 | |
72 | 23 | 2 | 62207 | / | 62207-2RS | / | 25500 | 15300 | 0.435 | |
72 | 27 | 2 | 63207 | / | 63207-2RS | / | 19404 | 12740 | 0.435 | |
80 | 21 | 1.5 | 6307 | 6307 ZZ | 6307-2RS | 6307-2RU | 33500 | 19100 | 0.457 | |
80 | 31 | 2.5 | 62307 | / | 62307-2RS | / | 33200 | 19000 | 0.67 | |
80 | 34.9 | 2.5 | 63307 | / | 63307-2RS | / | 23520 | 16170 | 0.71 | |
100 | 25 | 1.5 | 6407 | / | / | / | 55000 | 31000 | 0.936 |
d 40 ~ 70 mm
Hoofdafmetingen (mm) | Model | Cr(N) | Maïs) | gewicht (g) | ||||||
d | D | B | r | Open | Ijzeren dop | Contactkap | Contactloos | |||
40 | 50 | 6 | 0.3 | 6708 | 6708 ZZ | 6708-2RS | 6708-2RU | 2519 | 2234 | 0.023 |
52 | 7 | 0.3 | 6808 | 6808 ZZ | 6808-2RS | 6808-2RU | 5050 | 4350 | 0.033 | |
62 | 12 | 0.6 | 6908 | 6908 ZZ | 6908-2RS | 6908-2RU | 13700 | 9900 | 0.109 | |
68 | 9 | 0.3 | 16008 | / | / | 11100 | 8550 | 0.125 | ||
68 | 15 | 1 | 6008 | 6008 ZZ | 6008-2RS | 6008-2RU | 16800 | 11500 | 0.194 | |
68 | 21 | 1.5 | 63008 | / | 63008-2RS | / | 16800 | 11600 | 0.259 | |
80 | 18 | 1.1 | 6208 | 6208 ZZ | 6208-2RS | 6208-2RU | 29100 | 17900 | 0.366 | |
80 | 23 | 2 | 62208 | / | 62208-2RS | / | 30700 | 19000 | 0.45 | |
80 | 30.2 | 2 | 63208 | / | 63208-2RS | / | 20580 | 14210 | 0.435 | |
90 | 23 | 1.5 | 6308 | 6308 ZZ | 6308-2RS | 6308-2RU | 40500 | 24100 | 0.633 | |
90 | 33 | 2.5 | 62308 | / | 62308-2RS | / | 41000 | 24000 | 0.91 | |
90 | 36.5 | 2.5 | 63308 | / | 63308-2RS | / | 29400 | 20482 | 1.02 | |
110 | 27 | 2 | 6408 | / | / | 63500 | 36500 | 1.2 | ||
45 | 55 | 6 | 0.3 | 6709 | 6709 ZZ | 6709-2RS | 6709-2RU | 2577 | 2401 | 0.025 |
58 | 7 | 0.3 | 6809 | 6809 ZZ | 6809-2RS | 6809-2RU | 6400 | 5500 | 0.04 | |
68 | 12 | 0.6 | 6909 | 6909 ZZ | 6909-2RS | 6909-2RU | 14100 | 10900 | 0.122 | |
75 | 10 | 0.6 | 16009 | / | / | / | 12900 | 10500 | 0.17 | |
75 | 16 | 1 | 6009 | 6009 ZZ | 6009-2RS | 6009-2RU | 21000 | 15200 | 0.246 | |
75 | 23 | 1.5 | 63009 | / | 63009-2RS | / | 20800 | 14600 | 0.345 | |
85.0 | 19 | 1.1 | 6209 | 6209 ZZ | 6209-2RS | 6209-2RU | 32500 | 20500 | 0.407 | |
85.0 | 23 | 2 | 62209 | / | 62209-2RS | / | 33200 | 21600 | 0.485 | |
85.0 | 30.2 | 2 | 63209 | / | 63209-2RS | / | 22540 | 15680 | 0.64 | |
100.0 | 25 | 1.5 | 6309 | 6309 ZZ | 6309-2RS | 6309-2RU | 53000 | 32000 | 0.833 | |
100.0 | 36 | 2.5 | 62309 | / | 62309-2RS | / | 52700 | 31500 | 1.19 | |
100.0 | 39.7 | 2.5 | 63309 | / | 63309-2RS | / | 37240 | 27440 | 1.3 | |
120.0 | 29 | 2 | 6409 | / | / | 77500 | 45000 | 1.55 | ||
50 | 62.0 | 6 | 0.3 | 6710 | 6710 ZZ | 6710-2RS | 6710-2RU | 2666 | 2636 | 0.064 |
65.0 | 7 | 0.3 | 6810 | 6810 ZZ | 6810-2RS | 6810-2RU | 6600 | 6050 | 0.052 | |
72.0 | 12 | 0.6 | 6910 | 6910 ZZ | 6910-2RS | 6910-2RU | 14500 | 11700 | 0.127 | |
80.0 | 10 | 0.6 | 16010 | / | / | / | 16100 | 13100 | 0.18 | |
80.0 | 16 | 1 | 6010 | 6010ZZ | 6010-2RS | 6010-2RU | 21800 | 16600 | 0.264 | |
80.0 | 23 | 1.5 | 63010 | / | 63010-2RS | / | 21600 | 16000 | 0.37 | |
90.0 | 20 | 1.1 | 6210 | 6210 ZZ | 6210-2RS | 6210-2RU | 35000 | 23200 | 0.463 | |
90.0 | 23 | 2 | 62210 | / | 62210-2RS | / | 35100 | 23200 | 0.535 | |
90.0 | 30.2 | 2 | 63210 | / | 63210-2RS | / | 24500 | 18130 | 0.675 | |
110.0 | 27 | 2 | 6310 | 6310 ZZ | 6310-2RS | 6310-2RU | 62000 | 38100 | 1.07 | |
110.0 | 40 | 2 | 62310 | / | 62310-2RS | / | 61800 | 38000 | 1.55 | |
130.0 | 31 | 2.1 | 6410 | / | / | / | 87500 | 52000 | 1.91 |
d 40 ~ 70 mm
Hoofdafmetingen (mm) | Model | Cr(N) | Maïs) | gewicht (g) | ||||||
d | D | B | r | Open | Ijzeren dop | Contactkap | Contactloos | |||
55 | 68 | 7 | 0.3 | 6711 | / | / | / | 4850 | 5060 | 0.055 |
72 | 9 | 0.3 | 6811 | 6811 ZZ | 6811-2RS | 6811-2RU | 9100 | 8450 | 0.083 | |
80 | 13 | 1 | 6911 | 6911 ZZ | 6911-2RS | 6911-2RU | 16000 | 13200 | 0.177 | |
90 | 11 | 0.6 | 16011 | / | / | / | 15000 | 13500 | 0.26 | |
90 | 18 | 1.1 | 6011 | 6011 ZZ | 6011-2RS | 6011-2RU | 28300 | 21300 | 0.384 | |
100.0 | 21 | 1.5 | 6211 | 6211 ZZ | 6211-2RS | 6211-2RU | 43500 | 29300 | 0.607 | |
100.0 | 25 | 1.5 | 62211 | / | 62211-2BS | / | 43600 | 29000 | 0.7 | |
120.0 | 29 | 2 | 6311 | 6311 ZZ | 6311-2RS | 6311-2RU | 71500 | 44500 | 1.37 | |
120.0 | 43 | 2 | 62311 | / | 62311-2RS | / | 71500 | 45000 | 1.95 | |
140.0 | 33 | 2.1 | 6411 | / | / | / | 101000 | 62000 | 2.32 | |
60 | 75 | 7 | 0.3 | 6712 | / | / | / | 5900 | 6325 | 0.07 |
78 | 10 | 0.3 | 6812 | 6812 ZZ | 6812-2RS | 6812-2RU | 11500 | 10600 | 0.106 | |
85 | 13 | 1 | 6912 | 6912 ZZ | 6912-2RS | 6912-2RU | 19400 | 16200 | 0.191 | |
95 | 11 | 0.6 | 16012 | / | / | / | 16200 | 14300 | 0.28 | |
95 | 18 | 1.1 | 6012 | 6012 ZZ | 6012-2RS | 6012-2RU | 29500 | 23200 | 0.418 | |
110.0 | 22 | 1.5 | 6212 | 6212 ZZ | 6212-2RS | 6212-2RU | 52500 | 36000 | 0.783 | |
110.0 | 28 | 1.5 | 62212 | / | 62212-2BS | / | 47500 | 32500 | 0.97 | |
130.0 | 31 | 2 | 6312 | 6312 ZZ | 6312-2RS | 6312-2RU | 82000 | 52000 | 1.7 | |
130.0 | 46 | 2 | 62312 | / | 62312-2RS | / | 81900 | 52000 | 2.5 | |
130.0 | 35 | 2.1 | 6412 | / | / | / | 109000 | 70000 | 2.79 | |
65 | 85 | 10 | 0.6 | 6813 | 6813 ZZ | 6813-2RS | 6813-2RU | 12000 | 11500 | 0.125 |
90 | 13 | 1 | 6913 | 6913 ZZ | 6913-2RS | 6913-2RU | 17400 | 16000 | 0.2 | |
100.0 | 11 | 0.6 | 16013 | / | / | / | 20500 | 18600 | 0.3 | |
100.0 | 18 | 1.1 | 6013 | 6013 ZZ | 6013-2RS | 6013-2RU | 30500 | 25200 | 0.438 | |
120.0 | 23 | 1.5 | 6213 | 6213 ZZ | 6213-2BS | 6213-2RU | 57000 | 40000 | 0.99 | |
120.0 | 31 | 1.5 | 62213 | / | 62213-2RS | / | 55900 | 40500 | 1.25 | |
140.0 | 33 | 2.1 | 6313 | 6313 ZZ | 6313-2RS | 6313-2RU | 92500 | 59500 | 2.08 | |
140.0 | 48 | 2 | 62313 | / | 62313-2RS | / | 92300 | 60000 | 3 | |
160.0 | 37 | 2.1 | 6413 | / | / | / | 118000 | 78500 | 3.36 | |
70 | 85 | 7 | 0.3 | 6714 | / | / | / | 6100 | 7015 | 0.08 |
90 | 10 | 0.6 | 6814 | 6814 ZZ | 6814-2RS | 6814-2RU | 12100 | 11900 | 0.135 | |
100.0 | 16 | 1 | 6914 | 6914 ZZ | 6914-2RS | 6914-2RU | 23500 | 21100 | 0.327 | |
110.0 | 13 | 0.6 | 16014 | / | / | / | 26800 | 23600 | 0.433 | |
110.0 | 20 | 1.1 | 6014 | 6014 ZZ | 6014-2RS | 6014-2RU | 38000 | 31000 | 0.607 | |
125.0 | 24 | 1.5 | 6214 | 6214 ZZ | 6214-2RS | 6214-2RU | 62000 | 44000 | 1.07 | |
125.0 | 31 | 1.5 | 62214 | / | 62214-2RS | / | 60500 | 45000 | 1.3 | |
150.0 | 35 | 2.1 | 6314 | 6314 ZZ | 6314-2RS | 6314-2RU | 104000 | 68000 | 2.52 | |
150.0 | 51 | 2 | 62314 | / | 62314-2RS | / | 104000 | 68000 | 3.55 | |
180.0 | 42:00 | 3 | 6414 | / | / | / | 145000 | 105000 | 5 |
In precisiemachines zijn kogellagers met dubbele rij, met hun unieke structurele ontwerp en stabiele prestaties, in tal van apparaten kerntransmissiecomponenten geworden. In vergelijking met tradit...
LEES MEERWat is een type LR gekroonde buitenring? De Type LR gekroonde buitenring is een component gevonden in bepaalde lagers, vaak gebruikt in toepassingen waarbij het verminderen van wrijv...
LEES MEERAls het gaat om high-speed machines-hetzij in autoturbines, industriële turbines of precisierobotica-de uitvoering van een diep groove kogellager kan operationele efficiëntie maken of breken...
LEES MEERTrackrollers kogellagers zijn kritieke componenten in zware machines, die zorgen voor een soepele beweging en belastingverdeling in apparatuur zoals graafmachines, bulldozers en transportsyst...
LEES MEERAls kerncomponenten van mechanische apparatuur zijn de prestaties en kwaliteit van lagers rechtstreeks gerelateerd aan de operationele efficiëntie en stabiliteit van het hele systeem. Ningbo Wanshun Bearing Co., Ltd. heeft, als leider in de Chinese lagerindustrie, brede erkenning en vertrouwen gewonnen op de binnenlandse en buitenlandse markten met zijn uitstekende productietechnologie, strikt kwaliteitsmanagement en rijke productlijnen, vooral op het gebied van diepe groef kogellagers.
Groefkogellagers met diepe groef Met hun eenvoudige structuur, hoge belastbaarheid en lage wrijving worden ze veel gebruikt in verschillende soorten mechanische apparatuur en zijn ze een onmisbaar onderdeel van het transmissiesysteem geworden. Ningbo Wanshun Bearing Co., Ltd. is zich terdege bewust van het belang van diepgroefkogellagers en streeft daarom naar de productie van hoogwaardige en uiterst nauwkeurige diepgroefkogellagers om te voldoen aan de strenge eisen van verschillende industrieën voor transmissiesystemen.
In de productmatrix van Ningbo Wanshun zijn diepgroefkogellagers uit de 42- en 43-serie de eerste keuze van veel klanten geworden vanwege hun uitstekende prestaties en betrouwbare kwaliteit. Deze twee series producten voldoen niet alleen aan de internationale algemene normen, maar controleren ook strikt de materiaalkeuze, procescontrole, kwaliteitsinspectie en andere aspecten om ervoor te zorgen dat elke set lagers stabiel kan werken onder complexe en veranderende werkomstandigheden. Tegelijkertijd levert Ningbo Wanshun, om aan de persoonlijke behoeften van verschillende klanten te voldoen, ook diepgroefkogellagers uit de 42- en 43-serie met verschillende specificaties en configuraties om ervoor te zorgen dat de producten op grote schaal kunnen worden gebruikt in auto's, motoren, landbouwmachines, werktuigmachines en andere gebieden.
Als bedrijf dat zich richt op de productie van hoogwaardige lagers, heeft Ningbo Wanshun technologische innovatie altijd beschouwd als de belangrijkste drijvende kracht achter de ontwikkeling van het bedrijf. In het productieproces van diepgroefkogellagers introduceert het bedrijf voortdurend geavanceerde productieapparatuur en -technologie, optimaliseert het productieproces en verbetert de productie-efficiëntie en productkwaliteit. Tegelijkertijd heeft het bedrijf ook een compleet R&D-systeem opgezet en werkt het actief samen met bekende binnenlandse en buitenlandse universiteiten en wetenschappelijke onderzoeksinstellingen om gezamenlijk technische problemen te overwinnen en de technologische vooruitgang in de diepgroefkogellagerindustrie te bevorderen.
Kwaliteit is de levensader van Ningbo Wanshun. Het bedrijf neemt altijd "klanttevredenheid als middelpunt" als kernconcept van kwaliteitsmanagement, implementeert strikt de ISO9001-normen voor kwaliteitsmanagementsysteem en controleert strikt alle schakels, zoals de inkoop van grondstoffen, productie en verwerking, en de inspectie van eindproducten. Het bedrijf is ook uitgerust met geavanceerde testapparatuur en een professioneel testteam om uitgebreide tests uit te voeren op verschillende prestatie-indicatoren van het product om ervoor te zorgen dat elke set diepgroefkogellagers aan de industrienormen kan voldoen of deze zelfs kan overtreffen. Het is dit aanhoudende streven naar kwaliteit dat de diepgroefkogellagers van Ningbo Wanshun een goede reputatie en brede erkenning in de markt heeft opgeleverd.
Kijkend naar de toekomst zal Ningbo Wanshun Bearing Co., Ltd. de bedrijfsfilosofie van "vrienden maken alvorens zaken te doen, wederzijds voordeel en gemeenschappelijke ontwikkeling" blijven hooghouden, en een uitgebreide en diepgaande samenwerking uitvoeren met vrienden uit alle lagen van de bevolking. leven in binnen- en buitenland met een meer open geest en pragmatischer handelen. Het bedrijf is ervan overtuigd dat het door voortdurende inspanningen en innovaties zal bijdragen aan de ontwikkeling van de industriële productie in mijn land en zelfs in de wereld. Tegelijkertijd kijkt het bedrijf er ook naar uit om samen te werken met meer gelijkgestemde partners om samen een betere toekomst te creëren.
